Bridge City Tools Adjustable Square AS-24v3-M

Bridge City Tools Adjustable Square AS-24v3-M

Features

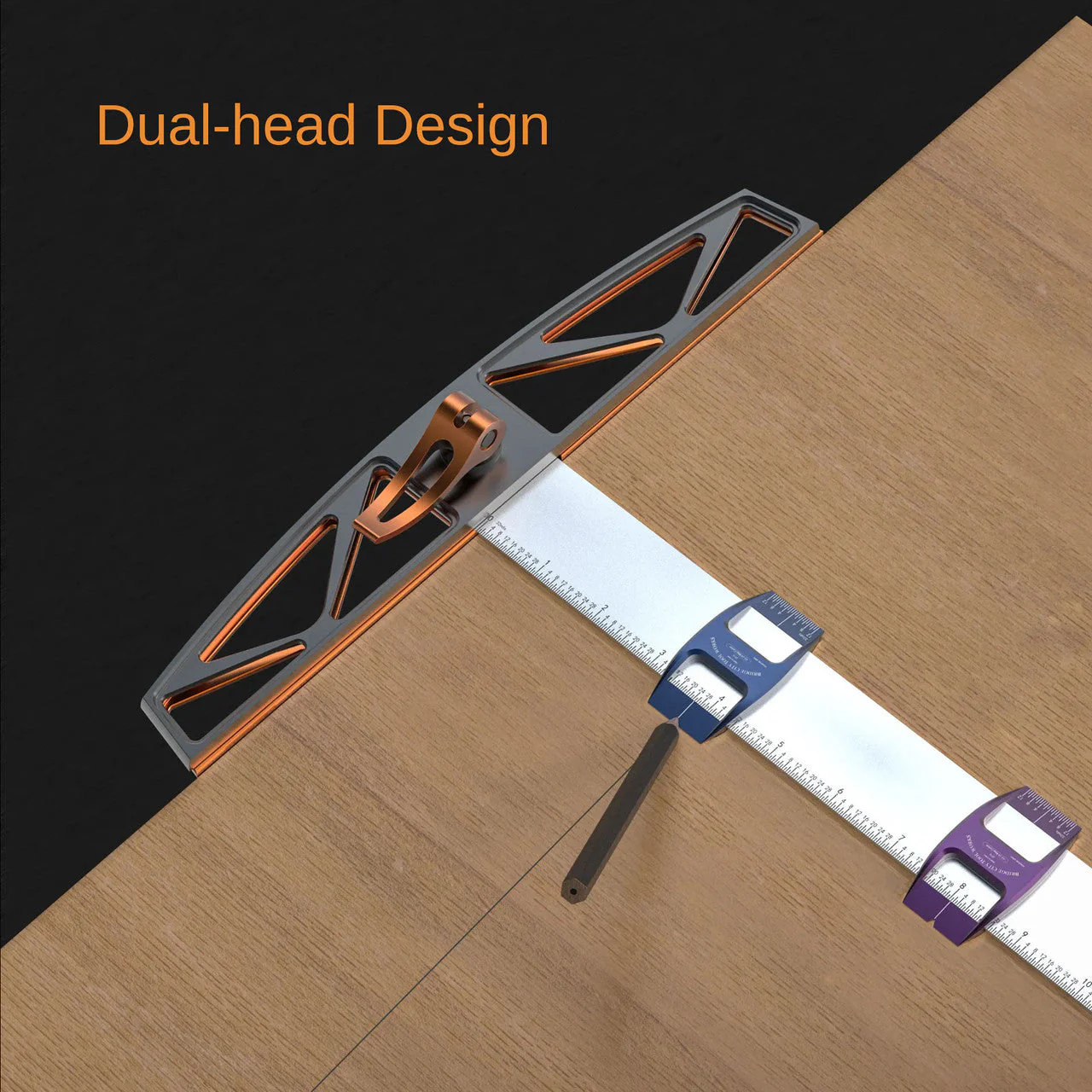

• Dual-head Design

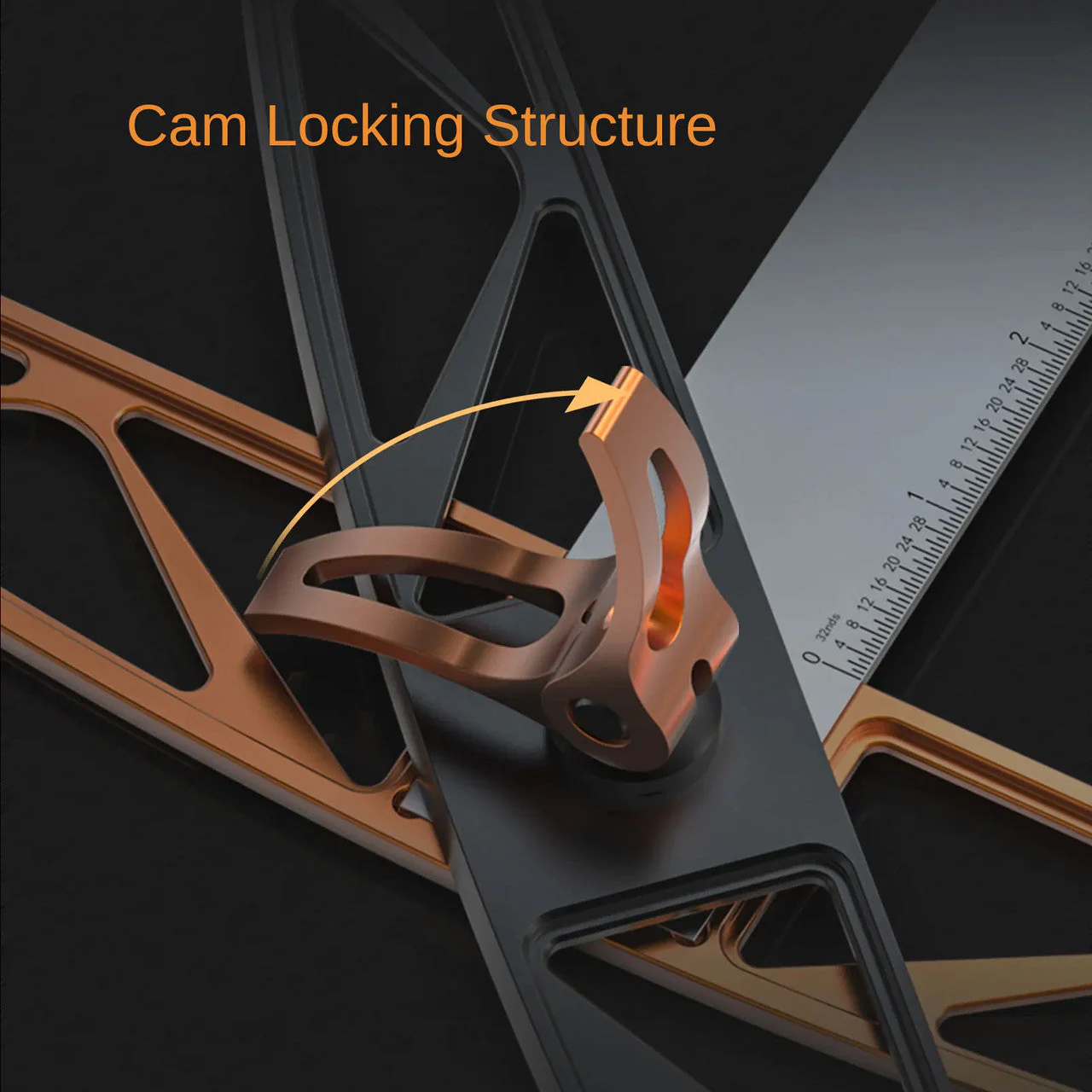

• Cam Locking Structure

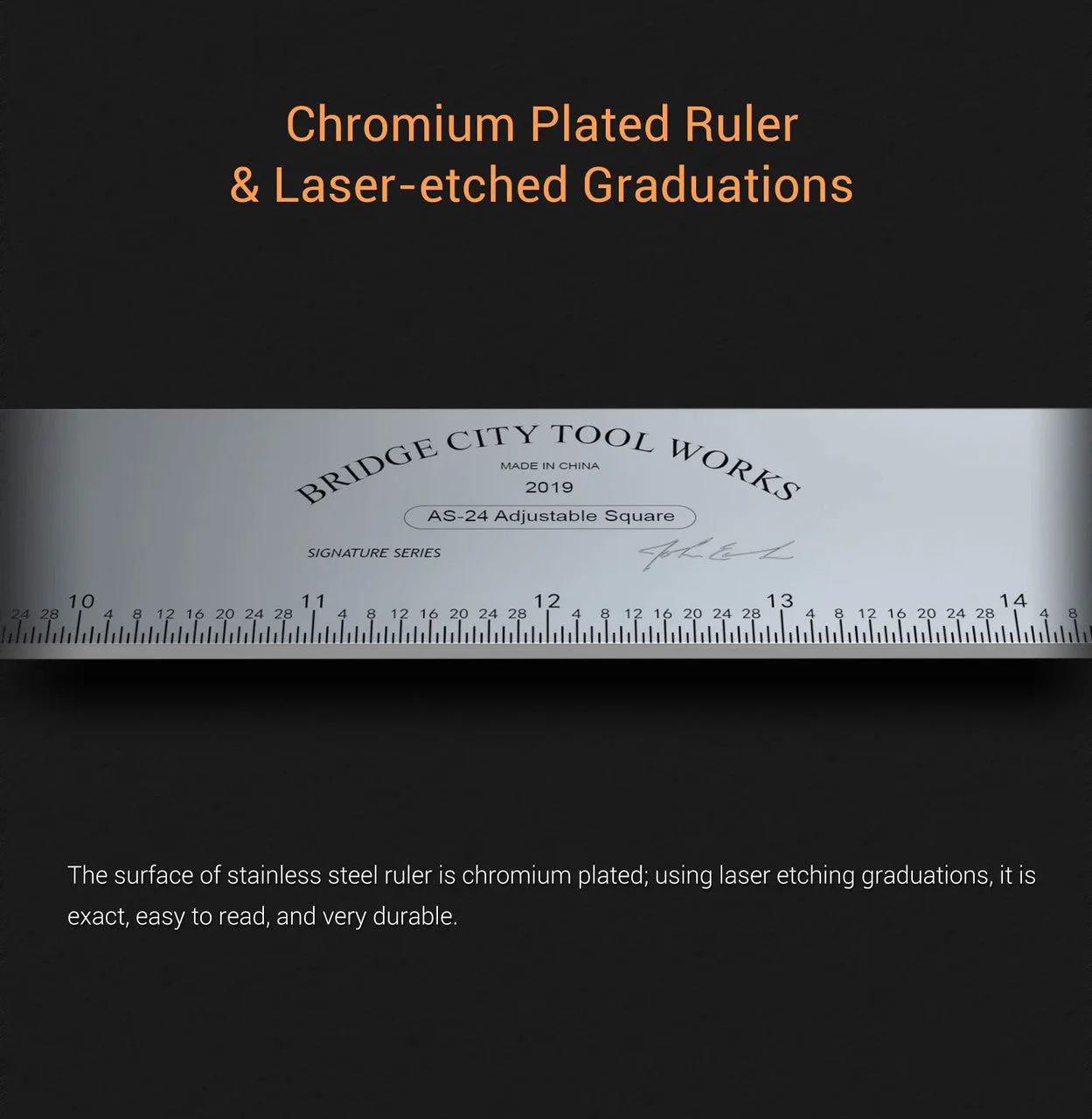

• Chromium Plated Ruler & Laser-etched Graduations
• Easy to read
• Very durable

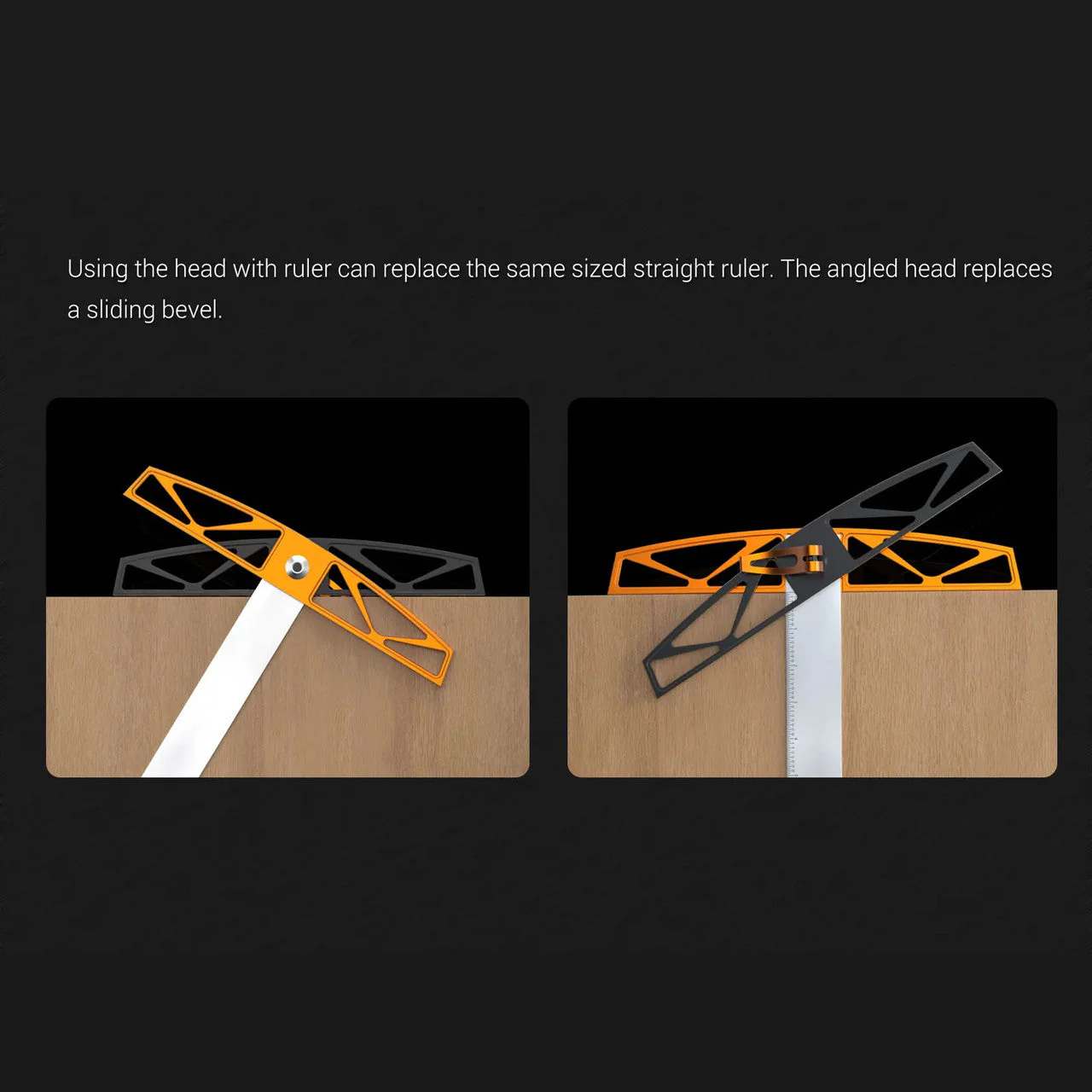

• Replace the straight ruler and the protractor - using the head with ruler can replace the same sized straight ruler. The angled head replaces a sliding bevel.

Accuracy

• Straightness of blade edge: 0.05mm
• Graduation accuracy of blade: 0.02mm/200mm
• Squareness of head and blade: ±0.05°

Specification

• Overall Dimension: 288 x 655.4 x 13 mm
• Min. Resolution: 1mm
• Blade Measuring Range: 0-600 mm
• Head Size: 287.5 x 44.1 x 6.4 mm
• Net/Gross Weight: 0.565 / 2.76 kg
• Package Dimension: 710 x 340 x55 mm

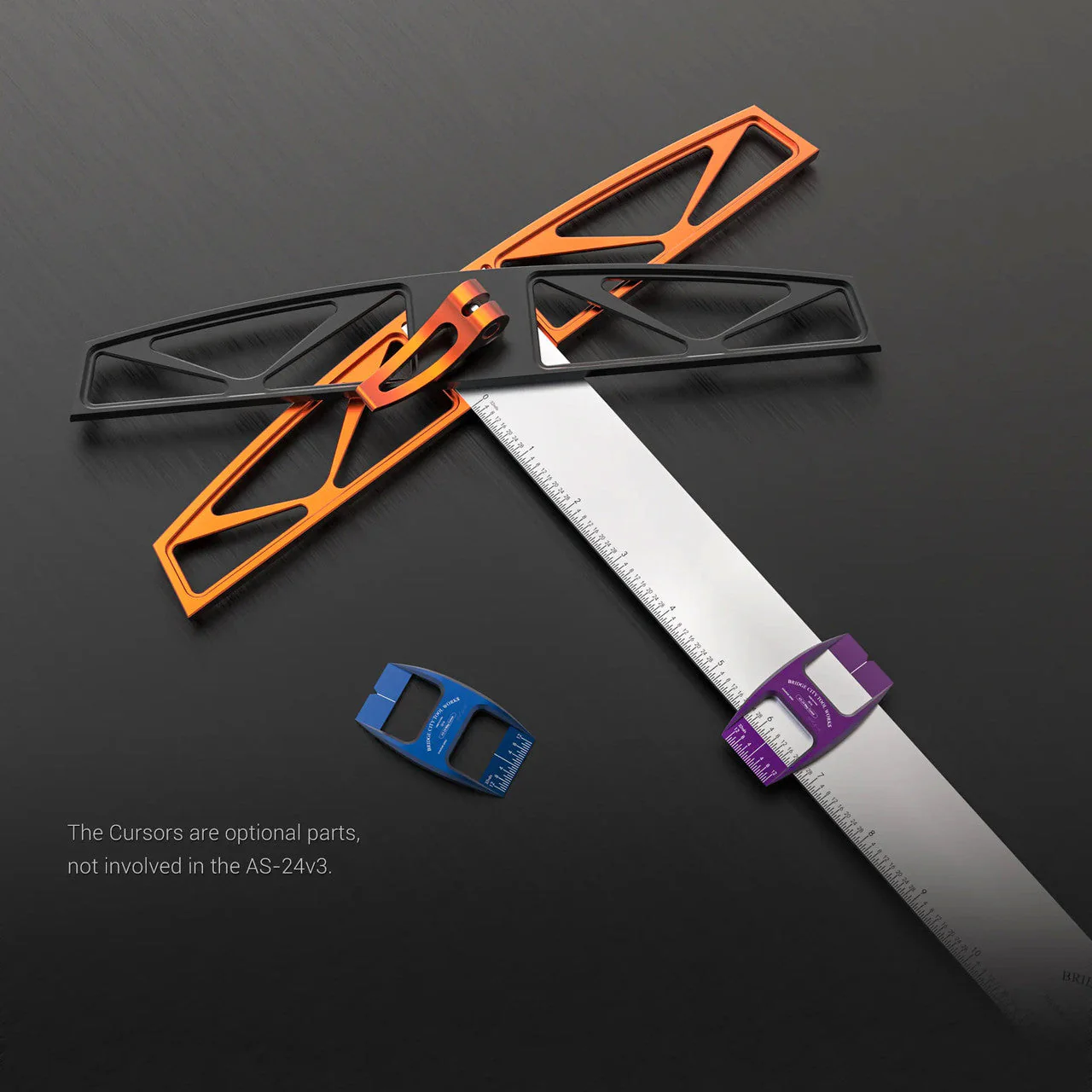

NOTE: The Cursors are optional part, not included in this product.
