Bridge City Woodwork Wood Double Square DS-6v2

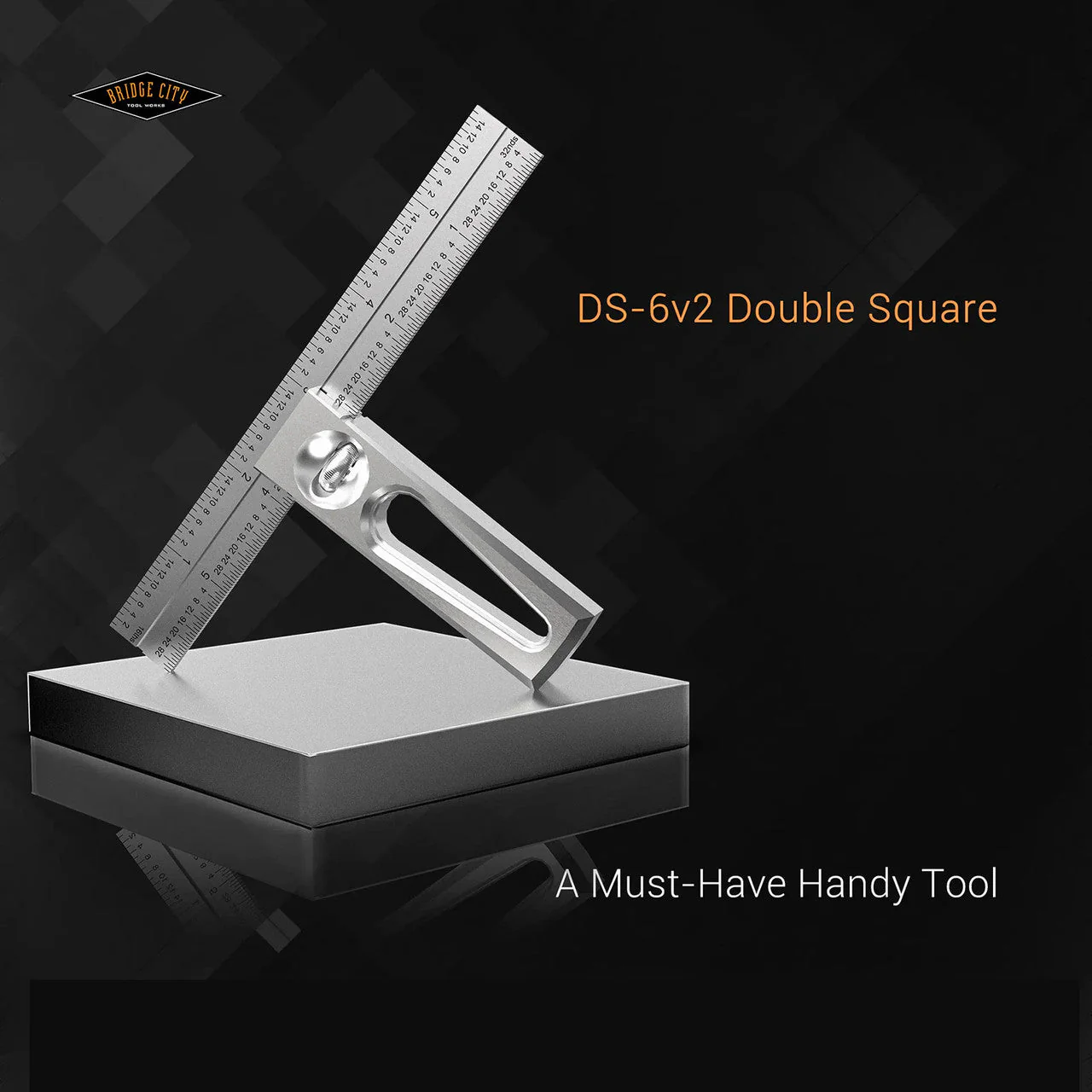

Bridge City Tools 150mm Double Square
Beautifully finished, this square will last for generations without any tarnishing or rust. It is a handy tool simply because they do not contain a 45 leg. The DS-6 Double Square is precisely milled, creating a tool with an accuracy limit of less than 0.05mm over the length of a fully extended blade.
Features

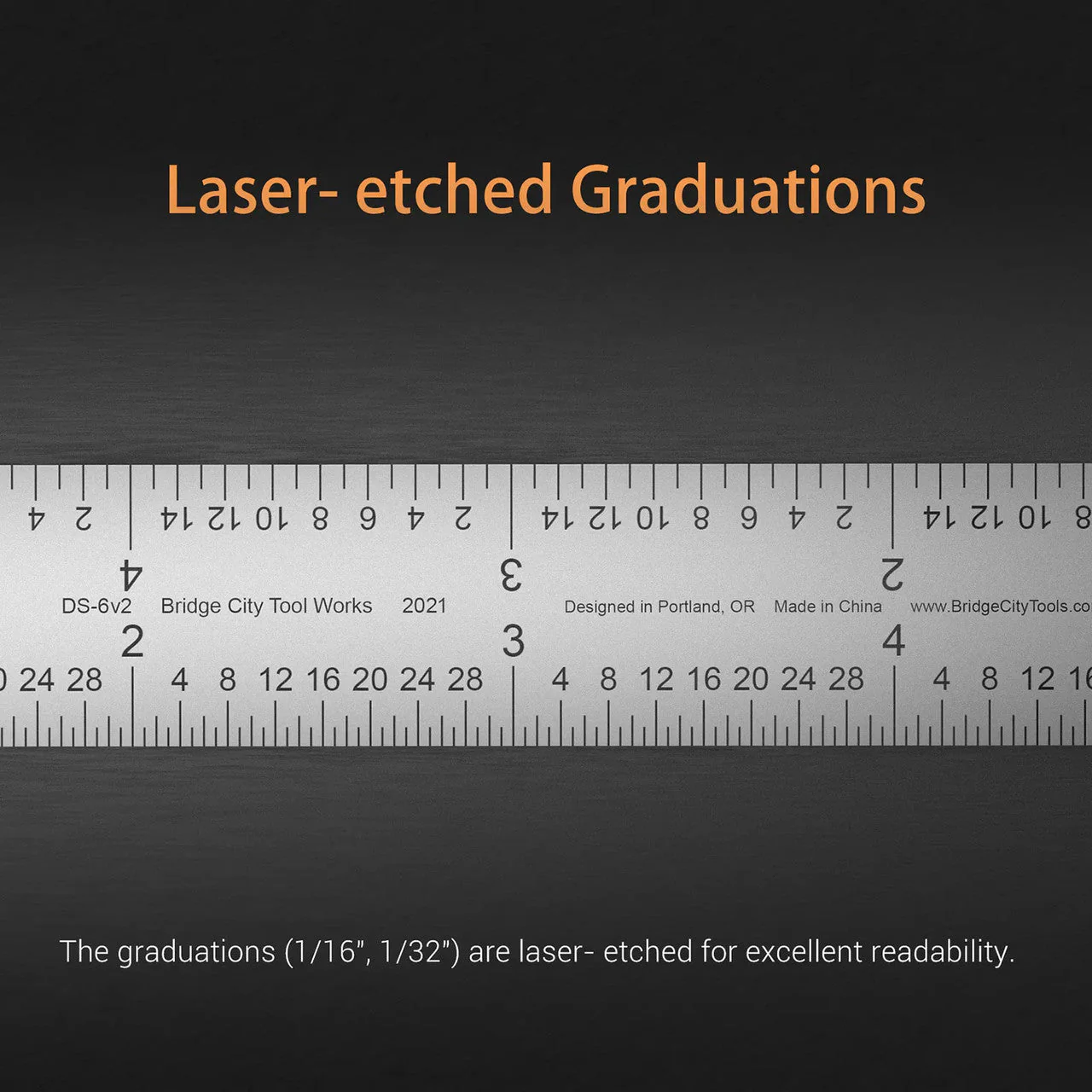

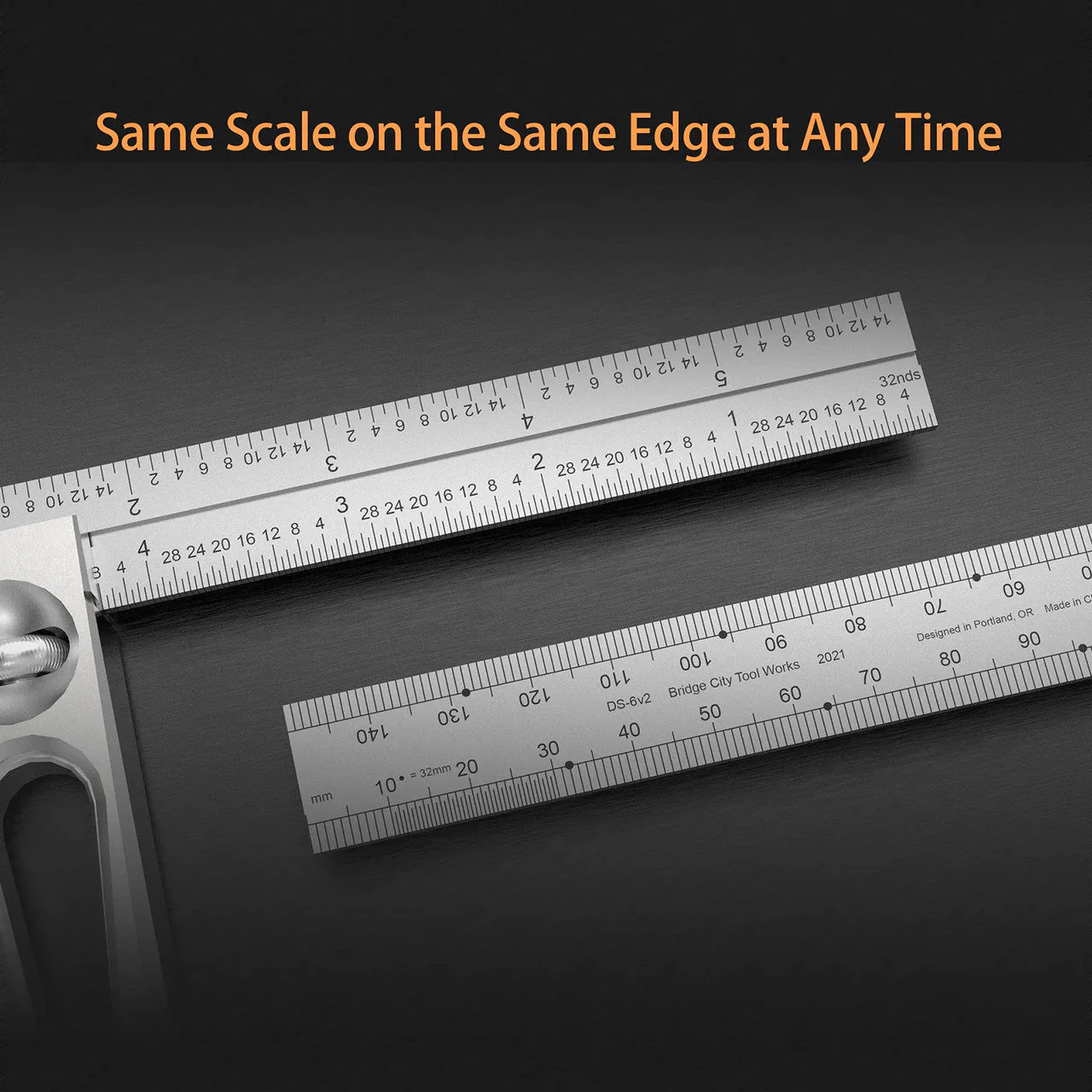

- Left-to-right and right-to-left reading 1mm with extra 0.5mm resolution at the end.
- Milled from stainless steel plate.

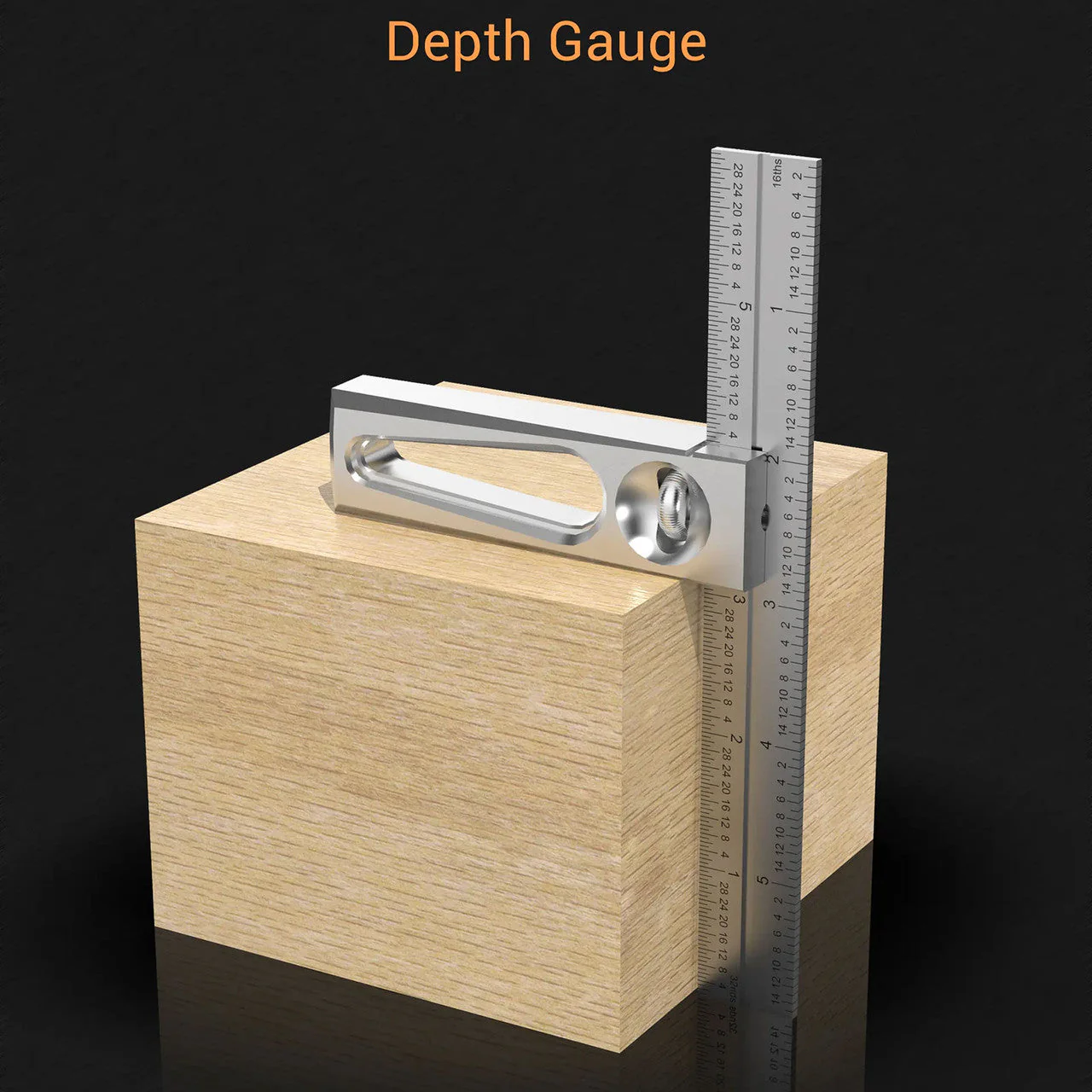

- You can use to determine the depth of mortises, dadoes, rabbets, holes and other assorted recesses.

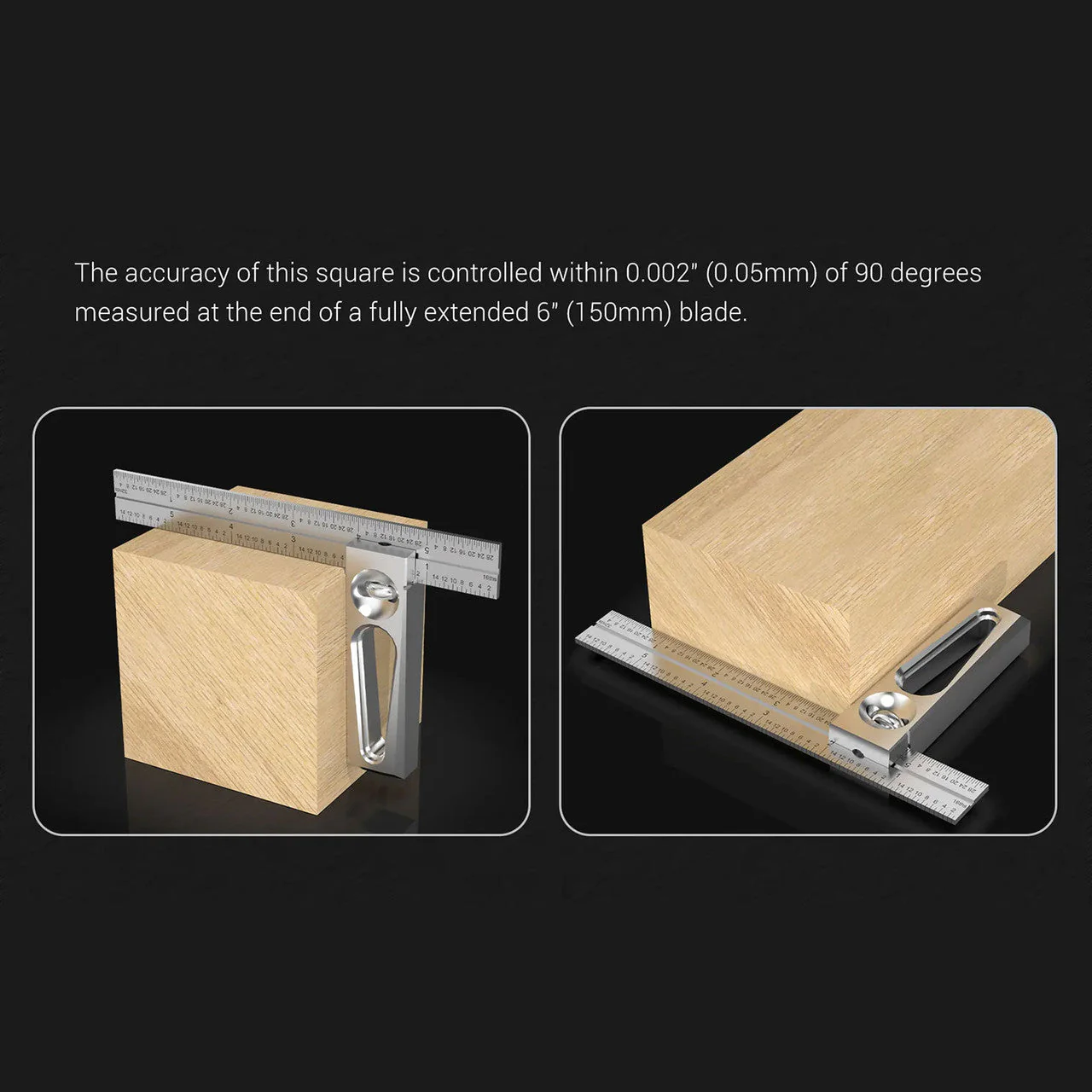

- The accuracy of this square is controlled within 0.05mm of 90 degrees measured at the end of a fully extended 150mm blade.
Specification
| Length | 150 mm |
| Width | 90.8 mm |
| Blade width | 18.5 mm |
| Blade thickness | 2 mm |
| Maximum measured length | 150 mm |
| Main body size | 83.5 x 22.5 x 15 mm |
| Net weight | 0.181 kg |
| Gross weight | 0.369 kg |
| Package size | 200 x 135 x 40 mm |
