BBT 2" DC Solar Swimming Pool Pump with Controller – 900W | 20,000 L/h | 19 m Head
BBT 2" XKP DC Solar Swimming Pool Pump with Controller – 900W | 20,000 L/h | 19 m Head
Reliable and Eco-Friendly Pool and Surface Water Pumping
Engineered for efficiency and ease of installation, the BBT 2" XKP DC Solar Swimming Pool Pump delivers reliable water circulation and transfer where grid power is unstable or unavailable. Designed for swimming pools, shallow surface sources, and domestic water features, this 900 W solar-driven pump integrates seamlessly with the DSDP-72V controller to ensure consistent performance under varying solar conditions.
Key Features:
- Rugged, Low-Maintenance Construction
- Durable, corrosion-resistant housing designed for prolonged outdoor use.
- Compact 2" design simplifies installation in tight spaces and pool systems.
- High-Performance Solar Pumping
- Power: 900 W DC motor optimized for solar energy systems.
- Maximum Flow: 20,000 L/h – ideal for swimming pool circulation and moderate water features.
- Maximum Head: 19 m – suitable for surface lifting and shallow distribution.

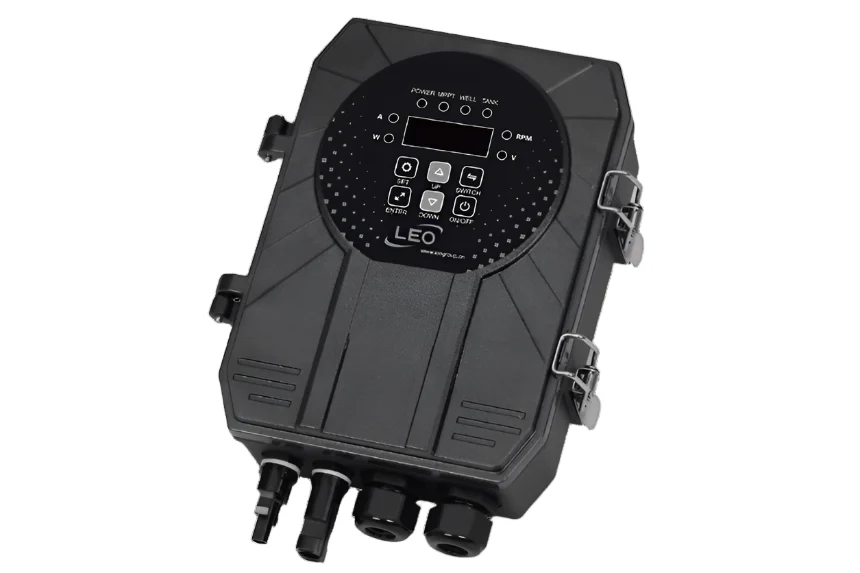

- DSDP-72V Controller Integration
- Input Voltage: 72 V DC / Output Voltage: 72 V AC
- MPPT-enabled regulation maximizes solar power harvest and guards against voltage fluctuations.
- Built-in protections: overvoltage, undervoltage, overload, and short-circuit.
Recommended Applications:
- Swimming pool and spa circulation
- Water features and fountains in off-grid locations
- Shallow well and reservoir transfer
- Garden irrigation
- domestic water supply
Specifications:
- Model: XKP20-19-72-900
- Power: 900 W DC
- Maximum Flow Rate: 20,000 L/h
- Maximum Head: 19 m
- Controller: DSDP-72V (DC 72 V → AC 72 V)
Solar Panel Requirements:
- Number of Panels: 3 (connected in series)
- Panel Wattage: 450 W each
- Vmp: 34.6 V per panel → Total Vmp: 103.8 V
- Voc: 42.8 V per panel → Total Voc: 128.4 V
Resulting System Parameters:
- Total Power Output: 3 × 450 W = 1,350 W
- Series Voltage @ Vmp: 3 × 34.6 V = 103.8 V
- Series Open-Circuit Voltage: 3 × 42.8 V = 128.4 V
Reliable. Efficient. Solar-Powered.
Enhance your pool circulation and surface water needs with the BBT 2" XKP DC Solar Pump — the sustainable choice for off-grid and eco-friendly water management.
Included in the Box:
- 1x 2" DC Solar Swimming Pool Pump
- 1x DSDP-72V Pump Controller
Solar panels not included
Box Size: 540mm x 250mm x 370mm
