BBT 1 1/4" Submersible/Bore Water Pump – 1500W - 8,100L/H - 88M Head

BBT Submersible/Bore Water Pump – 1500W - 8,100L/H - 88M Head

High-Performance Submersible Pump for Deep Well Applications

Engineered for reliability and built to withstand the demands of deep well pumping, the BBT 3" Submersible Bore Water Pump is the ideal solution for agricultural irrigation, remote water supply, and large-scale water transfer. Equipped with a robust control box, this pump ensures consistent performance, protection, and operational control.

Key Features:

Rugged Construction for Long-Term Durability

• Stainless steel motor casing and pump body for exceptional corrosion resistance.

• Heavy-duty components designed for deep well applications and demanding environments.

Powerful, Efficient Water Transfer

• Power: 1500W motor engineered for powerful, energy-efficient pumping.

• Maximum Flow Rate: 8,100 L/h – ideal for high-demand water transfer tasks.

• Maximum Head: 88m – capable of reaching deep boreholes and elevated delivery points.

• Max Immersion Depth: 150m – perfect for deep well operations.

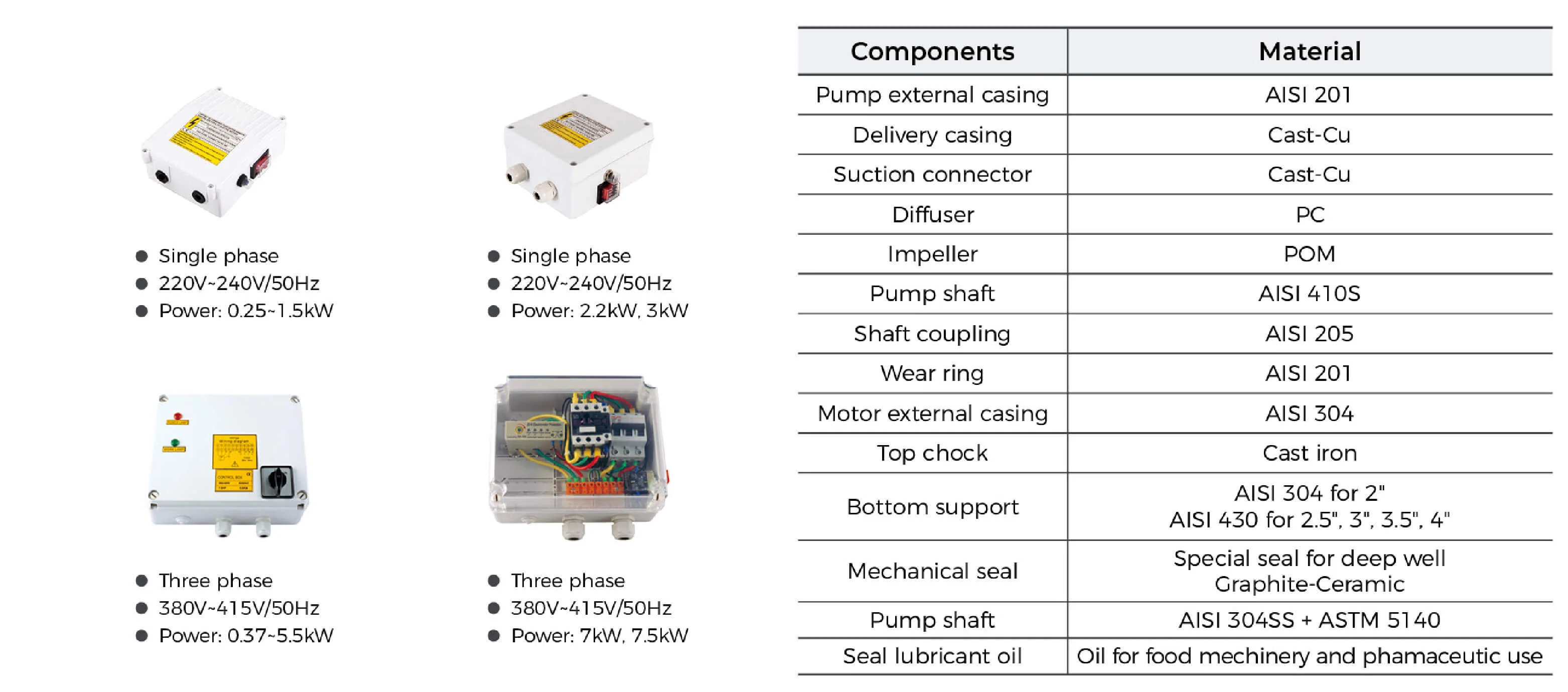

Reliable Control Box Integration

• Control box provides secure operation and motor protection.

• Overload and thermal protection prevent motor damage.

• Smooth start-up and operational stability under varying conditions.

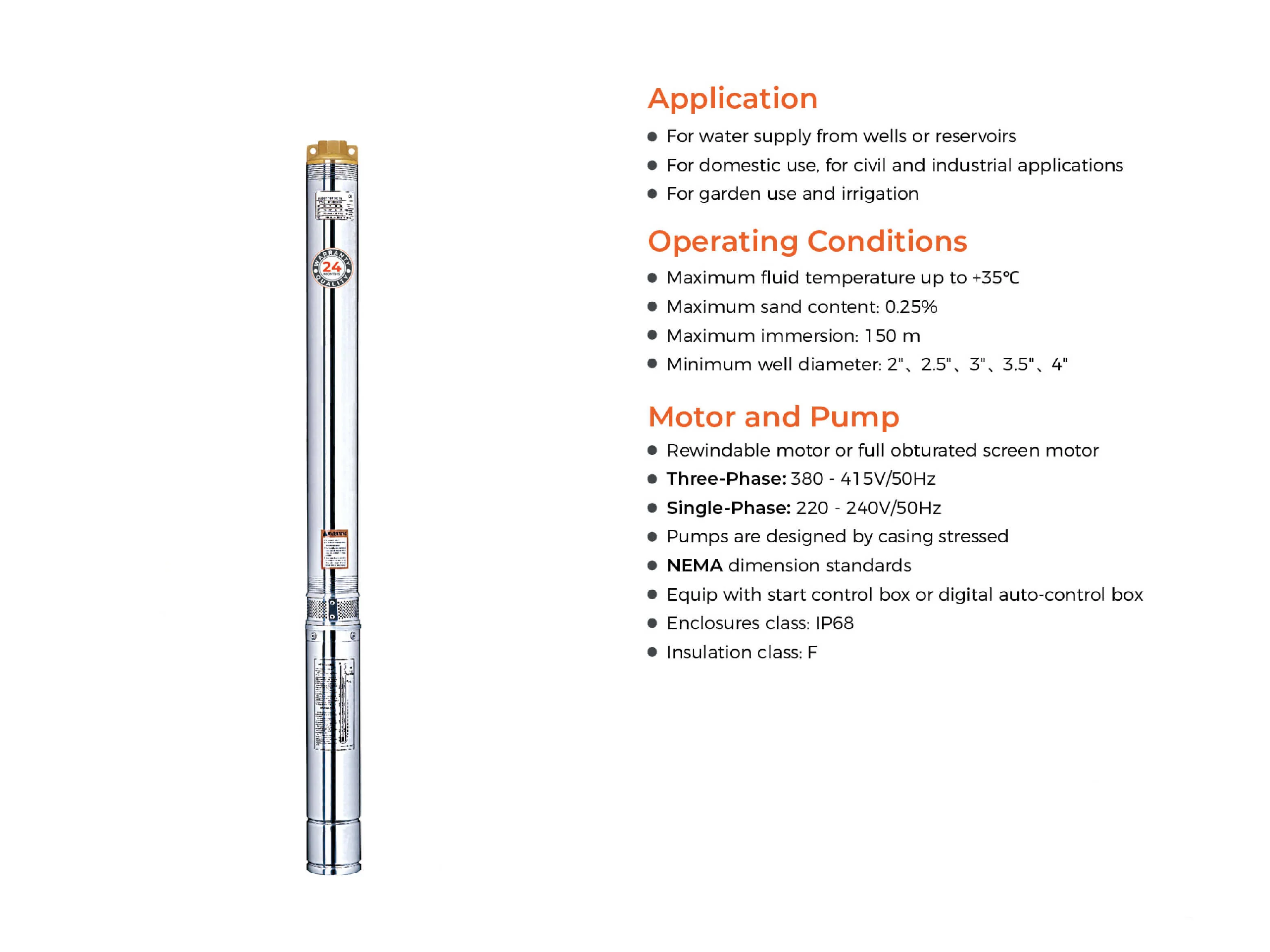

Versatile Applications:

• Deep well and borehole water extraction

• Residential water supply systems

• Agricultural irrigation and livestock watering

• Industrial water transfer

• Remote water pumping projects

Specifications:

• Model: 3XRm6/23-1.5

• Power: 1500W (240V, 50Hz)

• Maximum Flow Rate: 8,100 L/h

• Maximum Head: 88m

• Max Immersion Depth: 150m

• Outlet Size: 1 1/4"

• Inlet Size: 3"

• Cable Included: No

• Control Box Included: Yes

Efficient. Reliable. Powerful.
Delivering robust water flow in deep well applications, the BBT 3" Submersible Bore Water Pump is your trusted solution for dependable, high-volume pumping in remote and agricultural settings.

BOX 1: 1180mm X 80mm X 100mm 5.3KG

BOX 2: 660mm X 80mm X 110mm 11.7KG

BOX 3: 220mm X 170 X 100mm 1KG
