BBT 1" DC Surface Solar Pump with Controller – 750W | 3000 L/h | 65 m Head
BBT 1" AP3 Surface DC Solar Peripheral Pump with Controller – 750W | 3,000 L/h | 65 m Head
Reliable and Sustainable Peripheral Pumping for Remote Locations
Engineered for durability and easy installation, the BBT 1" AP3 Surface DC Solar Peripheral Pump delivers efficient water transfer where grid power is unstable or unavailable. Designed for shallow lift, irrigation, and domestic applications, this 750 W solar-driven pump integrates seamlessly with the DSDP-72V controller to ensure consistent performance under fluctuating solar conditions.

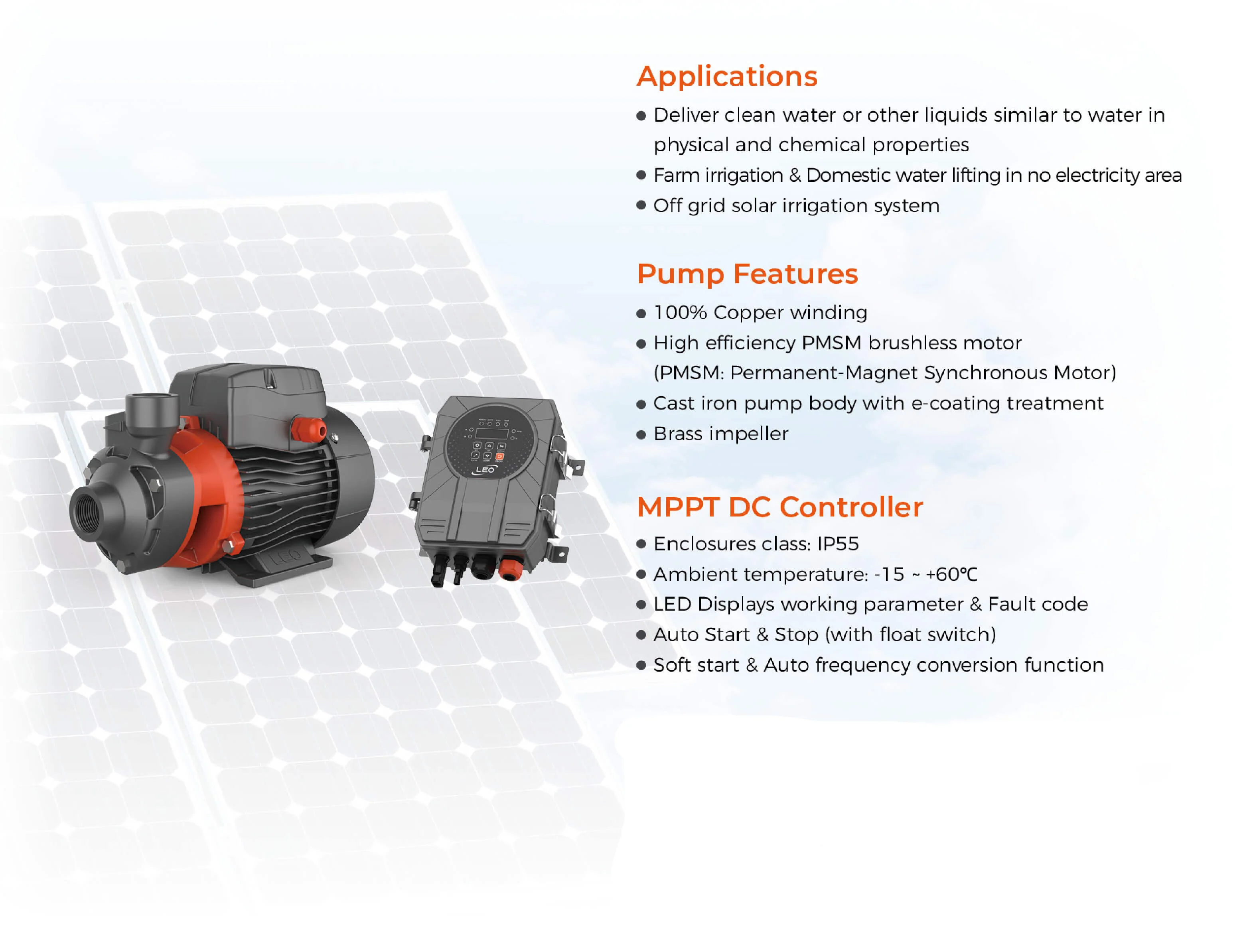

Key Features:
- Rugged, Maintenance-Free Construction
- Durable, corrosion-resistant housing designed for long-term outdoor use.
- Compact 1" design for easy handling and installation in tight spaces.
- High-Performance Solar Pumping
- Power: 750 W DC motor optimized for solar energy systems.
- Maximum Flow: 3,000 L/h – ideal for small to medium-volume tasks.
- Maximum Head: 65 m – suitable for moderate elevation lifts and peripheral pumping.

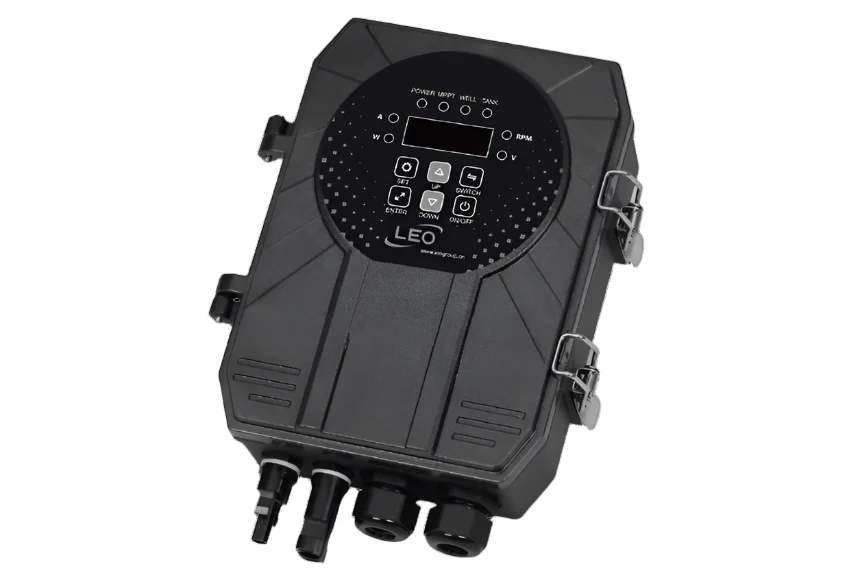

- DSDP-72V Controller Integration
- Input Voltage: 72 V DC / Output Voltage: 72 V AC
- MPPT-enabled control maximizes solar power harvest and protects against voltage fluctuations.
- Built-in safety features: overvoltage, undervoltage, overload, and short-circuit protection.
Recommended Applications:
- Agriculture irrigation from surface sources
- Livestock watering in remote fields
- Domestic water supply for off-grid homes
- Garden
- greenhouse irrigation
Specifications:
- Model: AP3-65-72-750
- Power: 750 W DC
- Maximum Flow Rate: 3,000 L/h
- Maximum Head: 72 m
- Controller: DSDP-72V (DC 72 V → AC 72 V)
Solar Panel Requirements:
- Number of Panels: 3 (connected in series)
- Panel Wattage: 340 W each
- Vmp: 34.35 V per panel → Total Vmp: 103.05 V
- Voc: 42.8 V per panel → Total Voc: 128.4 V
Resulting System Parameters:
- Total Power Output: 3 × 340 W = 1,020 W
- Series Voltage @ Vmp: 3 × 34.35 V = 103.05 V
- Series Open-Circuit Voltage: 3 × 42.8 V = 128.4 V
Reliable. Efficient. Solar-Powered.
Experience uninterrupted peripheral water delivery and reduced operating costs with the BBT 1" AP3 Surface DC Solar Peripheral Pump — your trusted choice for sustainable, off-grid pumping solutions.
Included in the Box:
- 1x 1" Surface DC Solar Pump
- 1x DSDP-72V Pump Controller

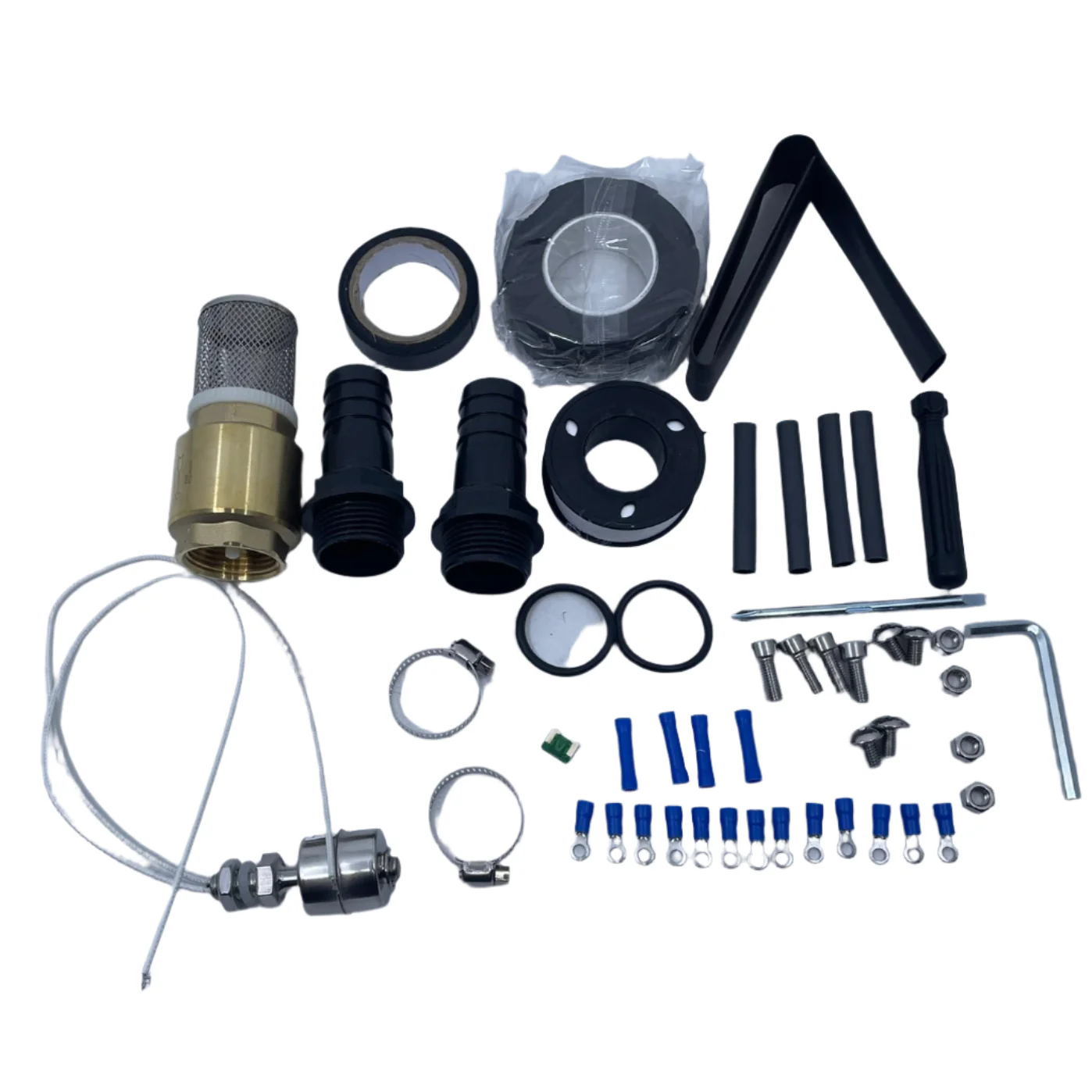

- 1x Accessory Bag
Solar panels not included
Box Size: 350mm x 280mm x 360mm
